Communication Devices

Our range of communications modules allow a variety of ways to remotely access or gather location information for our radar products. The modules are all designed for ultra low power and high performance at very modest cost of implementation.

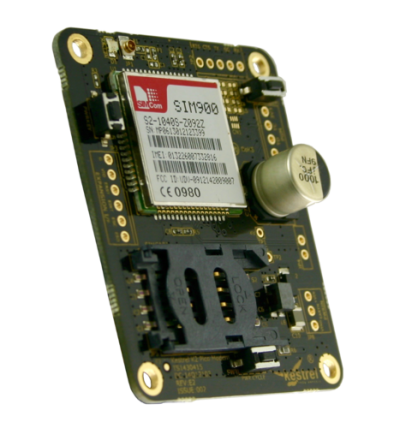

K2 Pico Modem

The K2 Pico Modem provides the ability to add remote access to any signage application across the GPRS network. This solution is particularly attractive for logging radar devices where data can be downloaded on an adhoc basis or over scheduled periods. It also offers the ability to change settings, update firmware and monitor remote installations in real-time. In addition the module can be used to send text message alerts.

Key Features

  • Quad band GPRS modem.
  • Available in 2G and 3G variants.
  • Allows remote access to K2 radars.
  • Allows remote data upload/download and firmware updates.
  • Time synchronisation to network time for data logging applications.
  • Available in two connector formats. Pin sockets for direct PCB mounting or pin headers for cabled solutions.
Typical Applications

  • Remote wireless connection to signage products and data logging devices.

K2 Pico Bluetooth

The K2 Pico Bluetooth module allows short range wireless access to our K2 radar products, this can be used for configuration, data download (for logging devices) and even for software upgrades. With up to 100 meters range it offers a simple contact free connection solution with minimal power consumption.

Key Features

  • Wireless access to K2 radars.
  • Data upload or download.
  • Range up to 100 metres.
  • Available in two connector formats. Pin sockets for direct PCB mounting or pin headers for cabled solutions.
Typical Applications

  • Wireless communications to K2 radars.

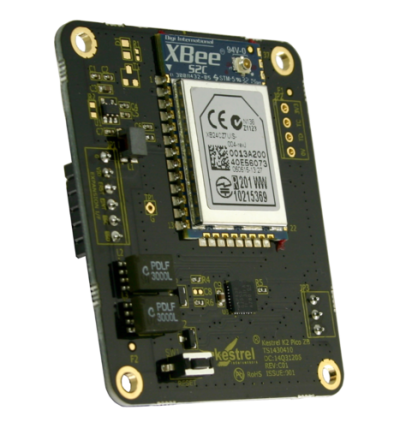

K2 Pico ZigBee

The K2 Pico ZigBee module provides radio communication with remote devices. Distances up to 3Km can be achieved line of sight. It can be used to send or receive data or control information in a wide variety of applications.

Key Features

  • Wireless access point to K2 products or external devices.
  • Up to 3Km distance clear line of site.
  • Available as Coordinator, Router and End Point.
  • Available in two connector formats. Pin sockets for direct PCB mounting or pin headers for cabled solutions.
Typical Applications

  • Wireless access point and remote connection to other devices.

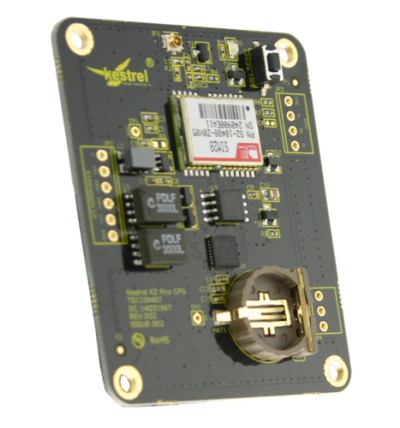

K2 Pico GPS

The K2 Pico GPS module offers satellite acquired positional information for K2 radar products. The integration of this into mobile signs allows data loggers to tag the data with the GPS location and this information be used by our Kestrel Workbench software. In addition the time and date provided by the satellites can be used as a high precision source for updating the K2 radars on board clock.

Key Features

  • 22 tracking/66 acquisition channel GNSS receiver.
  • Supports muli-GNSS, SBAS, EGNOS, WAAS, GAGAN.
  • A-GPS and EPO support with Ephemeris. Almanac data can be stored in battery backed storage for rapid reacquisition of satellites.
  • Available in two connector formats. Pin sockets for direct PCB mounting or pin headers for cabled solutions.
Typical Applications

  • GPS location tagging of installation and data logging, satellite time information acquisition in logging applications.
